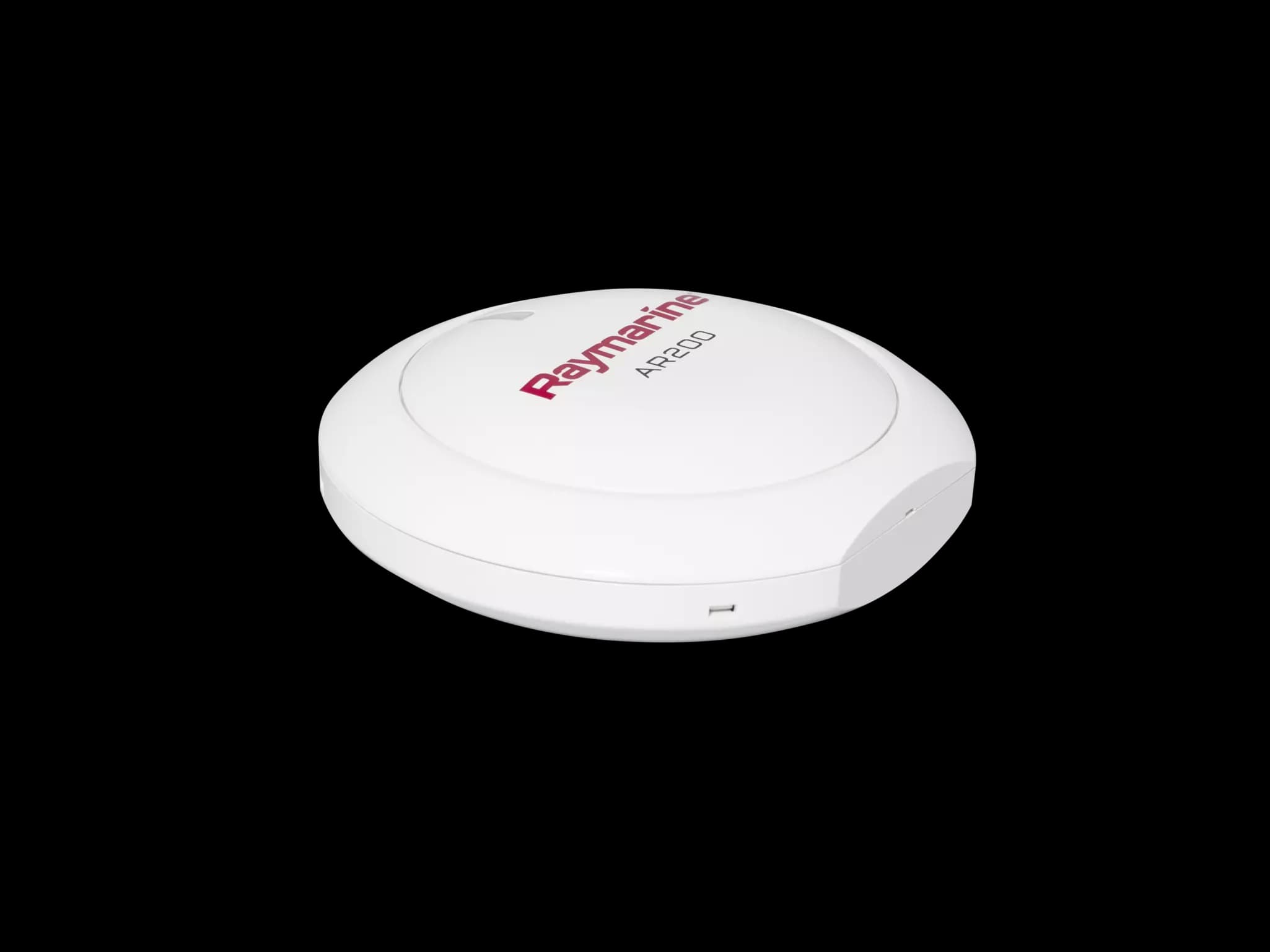

AR200
OEM: E70537
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine E70537"
Product Details (28)
Geodetic Datum
WGS-84
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan)
Channels
Simultaneously track up to 28 satellites
Antenna
Internal
Sensitivity
Cold start = -147 dBm, Re-acquisition = -160 dBm, Tracking = -164 dBm
Signal acquisition
Automatic
Differential acquisition
Automatic
Operating frequency
1574 MHz to 1605 MHz
Update rate
10 Hz
Position accuracy with SBAS (95%)
< 5 m
Time to first fix from hot start
< 45 seconds
Time to first fix from cold start
< 2 minutes (< 60 seconds typical)
Position accuracy without SBAS (95%)
< 15 m
Speed accuracy (95%)
< 0.3 kt
Magnetic compass accuracy
Static = ≤ 1° RMS, Dynamic = ≤ 3° RMS
AHRS (Attitude Heading Reference Sensor)
3-Axis digital accelerometer, 3-Axis digital compass, 3-Axis MEMS Gyro digital angular rate sensor
Heading, Pitch, Roll and Rate of Turn update rate
10 Hz
Pitch, Roll and Yaw accuracy
≤ 1°
Waterproof rating
IPx6, IPx7
Storage temperature range
-25° C to +70° C (-13° F to 158° F)
Operating temperature range
-25 ° C to +55° C (-13° F to 131° F)
Relative humidity
0.93
Standards
EMC Directive 2014/30/EU, Australia and New Zealand C-Tick compliance Level 2, RoHS Directive 2011/65/EU, WEEE Directive: 2012/19/EU
Dimensions
Diameter: 108.48 mm (4.27 in), Depth: 41.57 mm (1.64 in)
Operating voltage range
9 V dc to 16 V dc (protected up to 32 V dc)
Power consumption
30 mA Max
Nominal supply voltage
12 V dc (Supplied by the SeaTalkng network)
LEN (NMEA 2000 Load Equivalency Number)
1
