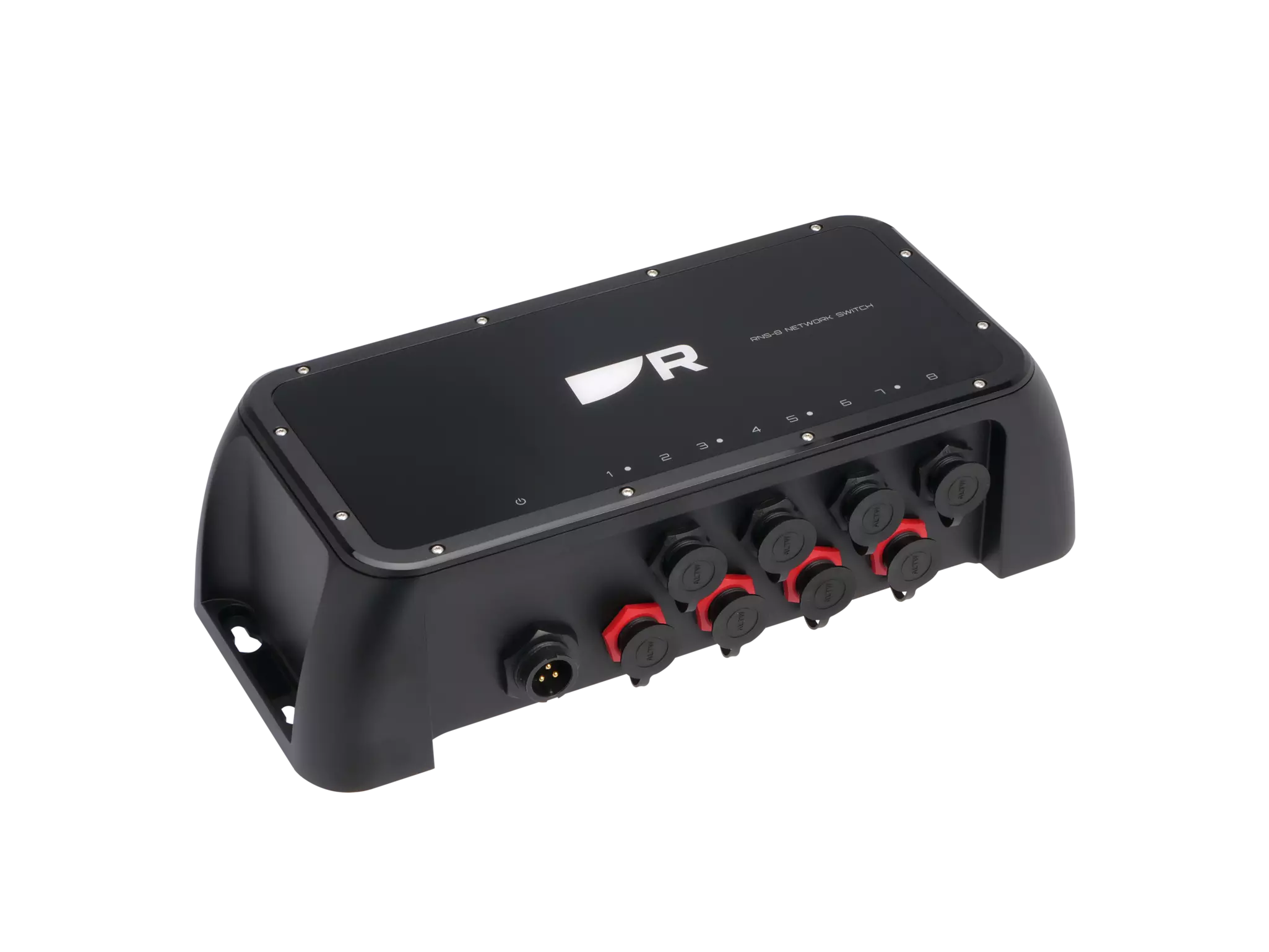

RNS-8
OEM: A80732
View on Raymarine ↗
1 / 2
Main
Related Products
No related products linked yet.
Customer Reviews
No reviews yet for this product.
Where to Buy
Search at Retailers
West MarineUSUS delivery; some oversized, hazmat, freight, and international restrictionsShip: Checkout rates vary by destination, service, and item class
UnavailableDefenderUSUS and international shipping options depend on item and destinationShip: Checkout/carrier quote; oversize, hazmat, and truck freight vary
UnavailableFisheries SupplyUSUS-focused delivery with quote-based exceptions for restricted freightShip: Checkout/carrier quote; oversize and hazardous items can add charges
UnavailablePartsVuUS + intlUS, territories, and international checkoutShip: $11.99 flat / free $99+; oversize quoted
UnavailableSearching for: "Raymarine A80732"
Product Details (75)
Dimensions (Trunnion mounted)
Axiom+ 7: Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Length
287.63 mm (11.32 in)
Dimensions (Trunnion mount)
Element 7: Height:162.59 mm (6.40 in), Width: 263.85 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 171 mm (6.73 in), Width: 308.4mm (12.14in), Depth: 149.40 mm (5.88 in)Element 12: Height: 225.19 mm (8.87 in), Width: 373.40 mm (14.70 in), Depth: 149.40 mm (5.88 in)
Dimensions (surface mount)
Element 7: Height: 135.10 mm (5.32 in), Width: 239.60 mm (9.43 in), Depth: 149.40 mm (5.88 in)Element 9: Height: 161.00 mm (6.34 in), Width: 286.50 mm (11.28 in), Depth: 149.40 mm (5.88 in)Element 12: Height: 215.20 mm (8.47 in), Width: 357.20 mm (14.06 in), Depth: 149.40 mm (5.88 in)
Height
125.5 mm (4.94 in)
Dimensions (Surface/Flush mounted)
Axiom+ 7: Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom+ 9: Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom+ 12: Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Weight (display only)
Element 7: 1.0 Kg (2.2lbs)Element 9: 1.3 Kg (2.86lbs)Element 12: 2.0 Kg (4.4lbs)
Accessory connection
USB Micro B
Depth
78 mm (3.07 in)
Ethernet connection
RayNet (10/100 Mbits/s)
Port separation distance
17.38 mm (0.68 in)
Size (diagonal):
Element 7: 7.0"Element 9: 9.0"Element 12: 12.1"
Weight
960.5 g (2.12 lbs)
Resolution
Element 7: WVGA 800 x 480Element 9: WVGA 800 x 480Element 12: WXGA 1280 x 800
External storage
MicroSDXC card slot x 1
Ratio
Element 7: 5:3Element 9: 5:3Element 12: 8:5
NMEA 2000 connection
DeviceNet (male connector built into power cable)
Nominal supply voltage
12 V or 24 V dc
Operating voltage range
9 V to 31.2 V dc
Viewing angle (T / B / L / R):
Element 7: 50° / 60° / 70° / 70°Element 9: 50° / 70° / 70° / 70°Element 12: 89° / 89° / 89° / 89°
Wireless connections
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage
16 GB Solid State (14 GB usable)
PoE operating voltage range
10.8 V to 31.2 V dc
Type
Element 7: TN (Twisted Nematic)Element 9: TN (Twisted Nematic)Element 12: IPS (In-Plane Switching)
Power consumption
160 W (Maximum) @ 12 V dc150 W (Maximum) @ 24 V dc
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
Color depth
24-bit
Current
13.3 A (Maximum) @ 12 V dc6.25 A (Maximum) @ 24 V dc
Size (diagonal)
Axiom+ 7: 7"Axiom+ 9: 9"Axiom+ 12: 12"
Maximum Illumination
1500 nits / 1500 cd/m2
Inline fuse rating
15 A @ 12 V dc8 A @ 24 V dc
Power consumption (Approximate @ 12 V dc)
Element 7: 15 WattsElement 9: 20 WattsElement 12: 25 Watts
Thermal breaker rating
20 A @ 12 V dc10 A @ 24 V dc
Viewing angle
Axiom+ 7: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 9: Top 85° / Bottom 85° / Left 85° / Right 85°Axiom+ 12: Top 88° / Bottom 88° / Left 88° / Right 88°
Illumination
Axiom+ 7: 1800 nits / 1800 cd/m2Axiom+ 9:1500 nits / 1500 cd/m2Axiom+ 12: 1800 nits / 1800 cd/m2
Network connection ports
4 x RayNet connection ports (10/100/1000 Mbits/s)4 x PoE RayNet connection ports (10/100/1000 Mbits/s). Each of the 4 ports supports PoE Classes 0 to 4, with 30 W maximum power available for each port.Note:You can mix a combination of PoE and non-PoE devices simultaneously, for a total of 8 devices (maximum PoE devices = 4; maximum non-PoE devices = 8).In order to sufficiently power PoE devices, the network switch’s power supply must exceed 10.8 V dc.
Fuse requirements
Inline fuse = 5 A, Thermal breaker = 3 A
Protective coating
HydroToughTM Oleophobic
IEEE Standard
Conforms to IEEE 802.3at
Operating temperature
–25 °C (–13 °F) to +55 °C (131 °F)
LEN (NMEA 2000 Load Equivalency Number)
1 (Based on 9 V dc nominal voltage)
SeaTalkng / NMEA 2000
1 x DeviceNet female connector built into power cable
Non-operating temperature
–30 °C (–22 °F) to +70 °C (158 °F)
Relative humidity
up to 93% @ 40 °C (104 °F)
Number of simultaneous touches
2
2.4 GHz Wi-Fi
1 x 802.11/b/g/n
Transducer
1 x 15-pin HyperVision connector
Waterproof rating
IPx6 & IPx7
Standards
EN 60945:2002 (Europe, Australia New Zealand)ICES-003 (Canada)CFR47 Part 15 (USA)IACS section E10 (Japan / China)
350 kHz (Standard) range
RealVision 3D = 0.6 M (2 ft) to 91 m (300 ft), SideVision = 0.6 M (2 ft) to 91 m (300 ft) each side, DownVision = 0.6 M (2 ft) to 183 m (600 ft)
Fuse rating
7 A
Product markings
UKCACEAustralian TickWEEE Directive
1.2 MHz (Hyper) range
RealVision 3D = 0.6 M (2 ft) to 38 m (125 ft), SideVision = 0.6 M (2 ft) to 38 m (125 ft) each side, DownVision = 0.6 M (2 ft) to 38 m (125 ft)
Sonar channels
Conical high CHIRP sonar, RealVision 3D (Hyper), RealVision 3D (Standard), SideVision (Hyper), SideVision (Standard), DownVision (Hyper), DownVision (Standard)
200 kHz range
Conical high CHIRP sonar = 0.6 M (2 ft) to 274 m (900 ft)
Frequencies
1.2 MHz CHIRP, 350 kHz CHIRP, 200 kHz CHIRP
Depth range
CHIRP conical sonar: 0.6 m (2 ft) to 274 m (900 ft), DownVision: 0.6 m (2 ft) to 183 m (600 ft), SideVision: 0.6 m (2 ft) to 91 m (300 ft) , RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft)
Power
1.2 MHz (Hyper) = 1000 W, 350 kHz (Standard) = 700 W, 200 kHz (Conical high CHIRP sonar) = 100 W
Storage temperature
-30°C to +70°C (-22°F to 158°F)
External
1 x MicroSDXC card slot
Operating temperature range
-25°C (-13°F) to +55°C (+131°F)
Storage temperature range
-30°C (-22°F) to +70°C (+158°F)
Humidity
up to 93% @ 40°C (+104°F)
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Channels
Multiple - ability to simultaneously track up to 28 satellites
Antenna
Internal - Ceramic chip mounted near top of unit
Signal Acquisition
Automatic
Almanac Update
Automatic
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Refresh rate
10 Hz (10 times per second)
Operating frequency
1574 MHz to 1605 MHz
Time to first fix from cold start
< 2 minutes
Cold start
< 2 minutes
